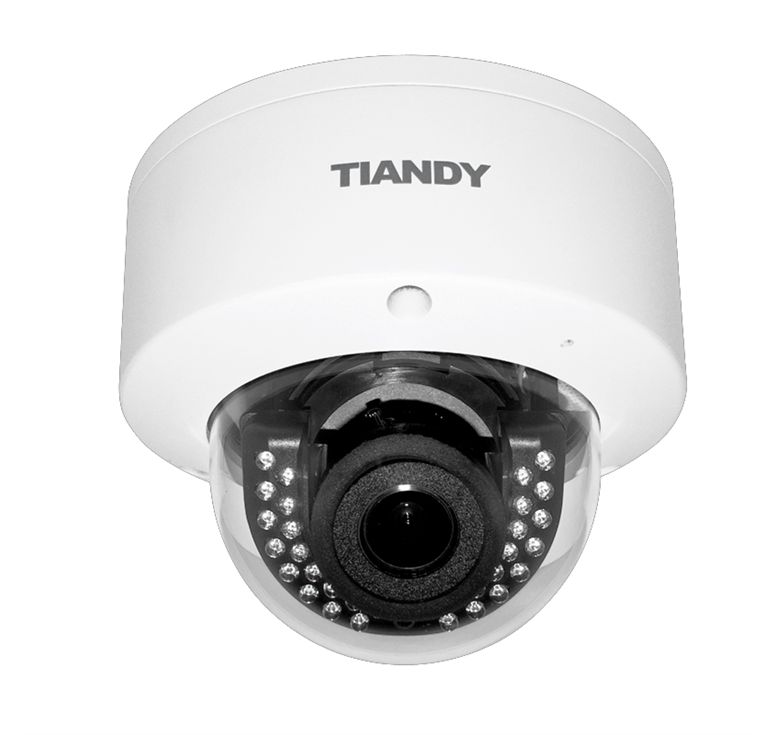

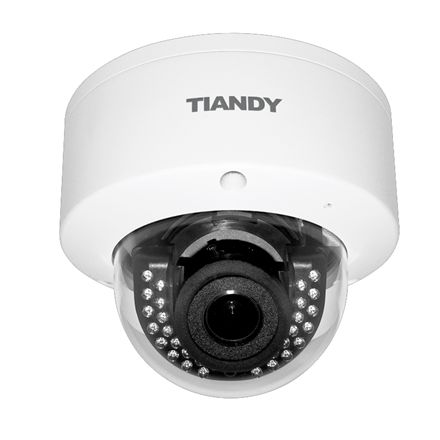

Camara IP Domo 2Mp IR30 PoE Motorizada 2.8-12mm Starlight VCA H.265 MicroSD I/O Audio BNC PoE IP66

Camera
Image Sensor: 1/2.8" Sony Starvis Exmor CMOS
Core Processor: ARM9 Architecture
Operating System: Embedded Linux
Signal System: PAL/NTSC
Min. Illumination: Color: 0.002Lux(F1.2,AGC ON)
B/W: 0.001Lux(F1.2,AGC ON); 0 Lux with IR
Shutter Time: 1s to 1/100,000s
Lens: Motorized 2.8-12mm, Angle of View: 92°~38.6°
Lens Mount: f14
Auto Iris: DC Drive
Adjustment Range: Pan:0° - 355°, Tilt: 0°- 75°, Rotation: 0° - 355°
Day& Night: IR Cut Filter with Auto Switch
Wide Dynamic Range: 100 dB
Digital Noise Reduction: 3D DNR
Focus: Auto
Compression Standard
Video Compression: H.265/H.264 HP/MP/BP/M-JPEG
Video Bit Rate: 32Kbps~16Mbps
Audio Compression: G.711A/G.711U/ADPCM/AAC
Audio Bit Rate: G711 8KHz, 64kbps ADPCM 8KHz, 32kbps AAC 48KHz, 96-320kbps
Max. Image Resolution: 1920x1080
Frame Rate: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720), Up to 1280*720@50fps
60Hz: 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720), Up to 1280*720@60fps
Triple Stream: Mainstream: 1080P(1920*1080)
Substream: D1(704*576)
3rd stream: 720P(1280*720)
Image Settings: Brightness, Saturation, Contrast,Flip Mode Adjustable by Client Software or Web Browser
HLC: Y
Smart Defog: Y
Corridor Format: Y
EIS: Y
ROI: 4 Zones
Privacy Mask: 4 Zones
Picture Overlay: 200 × 200, BMP 24bit, Zone Configurable
OSD: 16×16, 32×32, 24×24, 48×48, 64×64, 96×96 Size Letters Such as Week, Date, Time, Total 5 Regions
Network
Browser: IE8,IE9,IE10,IE11,Chrome30,Firefox24
Network Storage: FTP
NTP: Y
ANR: Y, Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection(Only Support Tiandy ANR NVR)
Video Analytics: Tripwire/Perimeter/Crowd/Foreign Oject/Missing Oject/Fast Moving/Loitering/Parking/Scene Change/Blur Image/Abnormal Audio
Alarm Trigger: Motion Detection/IP Conflict/MAC Conflict/Port Alarm/Mask Alarm
Protocols: IPv4/IPv6/HTTP/802.1x/FTP/SMTP/UPnP/SNMP/DNS/DDNS/NTP/RTSP/TCP/UDP/DHCP/PPPoE
User Permission: 4 Level/8 Users
Remote Connection: 4 Users Access at the Same Time
System Compatibility: ONVIF (Profile S), SDK, CGI
Interface
Audio Input: 1-ch, Bulit-in Mic
Audio Output: 1-ch
Communication Interface: 1-ch RJ45 10M / 100M Ethernet Interface
Alarm Input: 2-ch
Alarm Output: 1-ch
Video Output: 1Vp-p Composite Output(75O/BNC, for Internal Setup)
On-board Storage: MicroSD Card Slot ,Up to 128GB
Reset Button: Y
Extension: USB
General
Language: English,Spanish,Korean,Italian,Turkish,Thai,Russian,Traditional Chinese
Operating Conditions: -30ºC - 60ºC(IR OFF) /-20ºC - 40ºC(IR ON), 0-95% RHG
Power Supply: DC 12V 10%/AC24V 10%/PoE
Power Consumption: Max. 3.7W(IR OFF) (ICR Instant Switch 7.5W)
Max. 7.3W(IR ON)
Circuit Protection: TVS 6000V, Lightning/Surge Protection: (Power 2000V, RJ45 1000V)
Impact Protection: IP66, IK10
IR Range: 20m-30m
IR LEDs: 32pcs
Dimensions: 150mm×150mm×122mm
Weight: 1.0KG (IP Camera Only); 1.3KG (with Packing Box)
