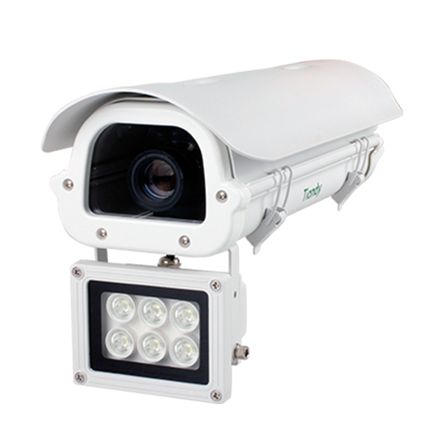

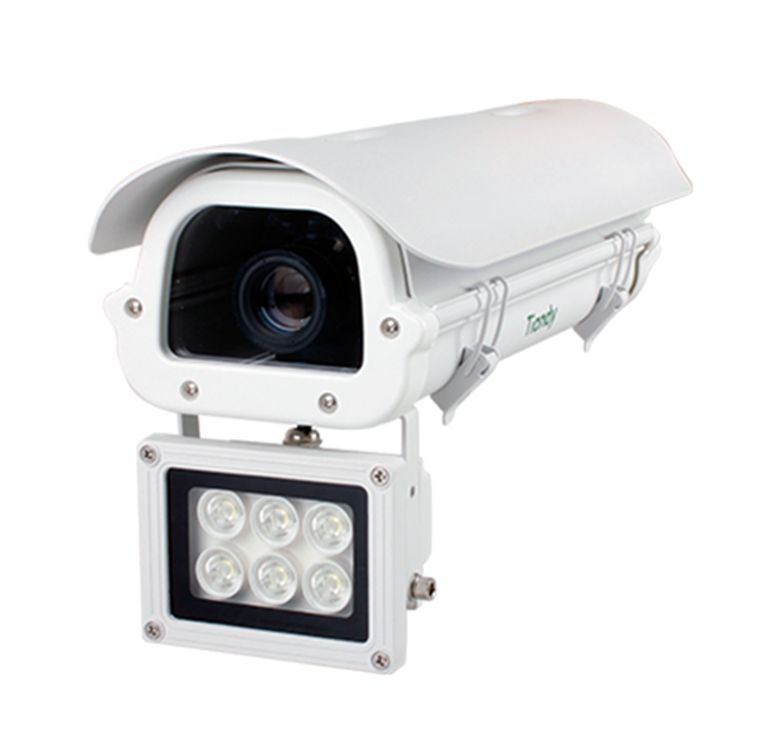

Camara Bullet 2MP Motorizada 20x IR 100m Starlight

Disponible

Ref: NC2AS-IR100.
. Starlight Ultra Low Light 0.002lux
. Up To 1080P, 1920x1080@30fps
. H.265/H.264 HP/MP/BP/M-JPEG Codec
. Min. Illumination Color: 0.002 Lux,B/W: 0.001 Lux, 0 Lux with IR
. Mechanical WDR 140dB
. Smart IR, IR Range: 100m
. Focal Length 4.7mm`94mm
. Optical Zoom: 20x, Digital Zoom: 16x
. VCA Tripwire/Double Tripwire/Perimeter/Object Abandon/Object
Lost/Running/Loitering/Parking/Crowd/Audio Abnormal Detection/
Video Abnormal Detection
. NIR, WDR, 3D DNR, HLC, Dual-ICR, AWB, AGC, BLC
. Interface Audio in/out 1/1,Alarm in/out 3/2,MicroSD Card Slot, up
to 128GB, Reset Button,BNC,RS-485
. TVS 6000V, Lightning/Surge 4000V Protection, IP66
. Operating Conditions -40. CE, FCC

Más detalles

559,95 € Precio sin IVA

Cantidad

Descargar producto en PDF

Camera
Image Sensor: 1/2.8" CMOS
Core Processor: ARM7 Architecture
Operating System: Embedded Linux
Signal System: PAL/NTSC
Min. Illumination: Color: 0.002Lux @(F1.6, 50 IRE, ICR OFF)
B/W: 0.001 Lux @(F1.6, 50 IRE, ICR ON)
Shutter Time: 1/1s - 1/100000s
Focal Length: 4.7mm - 94mm
Optical Zoom: 20X
Aperture Range: F1.5-F3.0
Zoom Speed: 4s (Optical, Wide Angle-overlook)
Angle of View: Horizontal: 55.8°(w)~3.2°(t)
Day& Night: Dual ICR
Wide Dynamic Range: 140 dB
Digital Noise Reduction: 3D DNR
Focus: Auto
Compression Standard
Video Compression: H.265, H.264 High Profile, MJPEG
Bit Rate: 32K - 16000Kbps
Audio Compression: G.711A, G.711U, AAC, ADPCM
Bit Rate: 8K - 48Kbps
Max. Image Resolution: 1920x1080
Frame Rate: 50Hz: 25fps (1920 × 1080), 25fps (1280 × 720)
60Hz: 30fps (1920 × 1080), 30fps (1280 × 720)
Triple Stream: Mainstream:1080P(1920*1080)
Substream:D1(704*576)
3rd stream:CIF(352*288)
Image Settings: Brightness, Saturation, Contrast,Flip Mode
HLC: Y
Corridor: Y, Available for 720P and Above
ROI: 8 Zones
Privacy Mask: 24 Zones
Picture Overlay: 200 × 200, BMP 24bit, Zone Configurable
Network
Browser: IE8,IE9,IE10,IE11,Firefox3.5+
Network Storage: NAS
NTP: Y
ANR: Y, Auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection(Only Support Tiandy ANR NVR)
Video Analytics: Tripwire/Double Tripwire/Perimeter/Object Abandon/Object
Lost/Running/Loitering/Parking/Crowd/Audio Abnormal Detection/Video Abnormal Detection
Alarm Trigger: Motion Detection/IP Conflict/MAC Conflict/Port Alarm
Protocols: TCP/UDP/HTTP/MULTICAST/UPnP/DHCP/PPPoE/DDNS/NFS/FTP/NTP/RTP/RTSP/IPv6/SNMP/SMTP
User Permission: 4 Level/32 Users
Remote Connection: 5 Users Access at the Same Time
System Compatibility: ONVIF (Profile S), SDK
Interface
Audio Input: 1-ch
Audio Output: 1-ch
Communication Interface: 1-ch RJ45 10M / 100M Ethernet Interface
Alarm Input: 3-ch
Alarm Output: 2-ch
Video Output: 1-ch,1Vp-p Composite Output?75?/BNC?
On-board Storage: N/A
RS-485: Y
Extension: 1-Micro SDHC
General
Language: English,Spanish,Korean,Italian,Turkish,Thai,Russian,Traditional Chinese,Simplified Chinese,Polish,French
Operating Conditions: -40ºC - 70ºC, 0 - 95% RHG
Power Supply: AC24V±15%
Power Consumption: Max. 25W(IR: 29W)
Circuit Protection: TVS 6000V, Lightning/Surge 4000V Protection
Impact Protection: IP66
IR Range: 100m
IR LEDs: 4pcs Array IR LEDs
White Light LEDs: 2pcs (Range 30m)

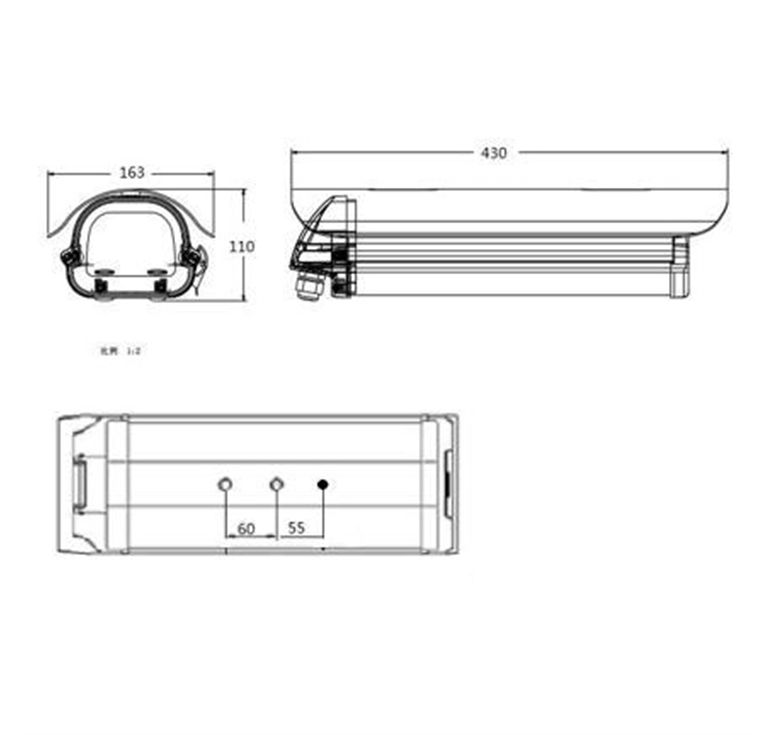

Dimensions: 430mm×163mm×110mm
Weight: 3.2kg (IP Camera Only); 3.6kg (with Packing Box)
