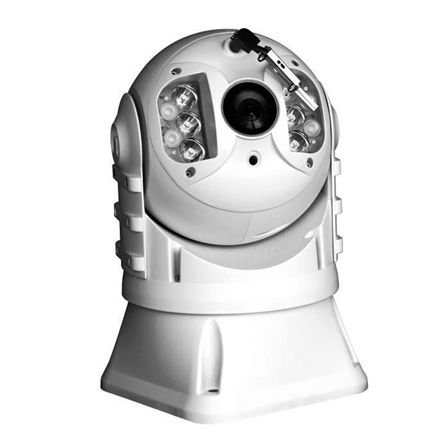

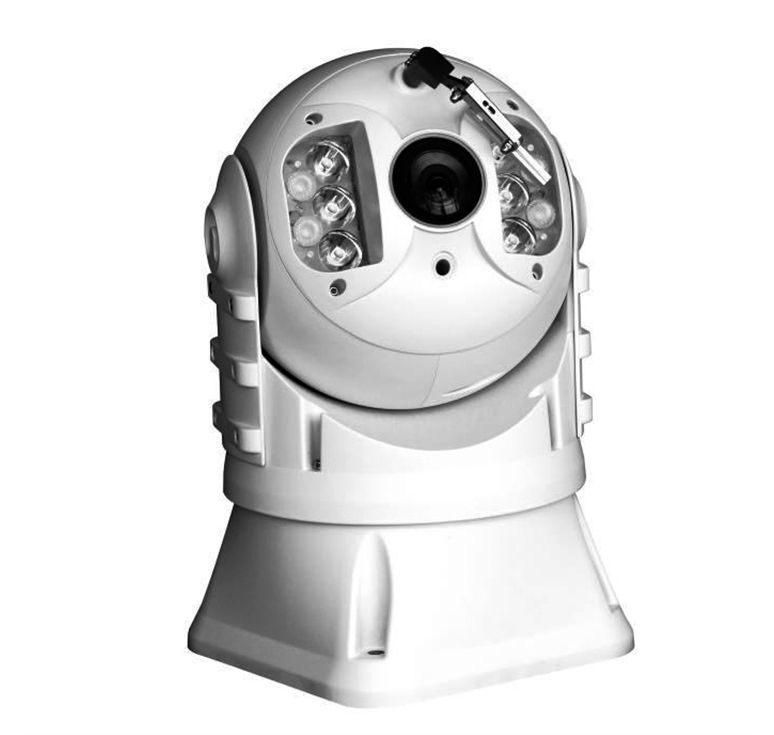

Camara motorizada vehiculo PTZ IP 2Mp IR150 44x

Consultar disponibilidad

Ref: VH-PTZ-970-44.
Aluminum PTZ case with high strength;
Powerful aux IR system, range up to 150 meters; infrared or White Light Range optional.
High Beam & Low Beam Settings for both Lighting models.
Model with Infrared lights will automatically turn on lamps in low light settings, can be automatically switched from low to High Beams, depending on Camera Zoom distance.
IP index up to IP67, full weather proof;
New design of drive system, PTZ positioning precision up to +/-0.05º.
Wide Voltage Range perfect for Mobile applications (12-24V DC
Multiple video output formats IPC,AHD,Analog camera, etc.
Optional wiper. Shock absorber. Anti-shock.
Optional color paint, white, black.

Más detalles

2 519,95 € Precio sin IVA

Descargar producto en PDF

Camera
Image Sensor: 1/2.8" Progressive Scan CMOS?2MP
Lens: 5~220mm, 44x optical zoom
Focus mode: Auto
Iris: Auto/Manual; F1.2 ~ F3.5
Shutter: Auto/Manual; shutter time: 1/6 s ~ 1/8000 s
Minimum Illumination: Color: 0.002lux @(F1.2,Color) / B/W: 0.0002 lux @(F1.2, White)
Day/Night: IR-cut filter with auto switch (ICR)
Video
Max. Resolution: 1920x1080
Video Compression: H.264 main Profile/MJPEG
Frame Rate: 1080P (1920*1080) 30 fps; 720P (1280*720) 30 fps; D1 (720*576) 25 fps
Video Streaming: Triple
Storage
Edge Storage: Micro SD, up to 64 GB
Network
Protocols: L2TP / IPv4 / IGMP / ICMP / ARP / TCP /UDP / DHCP / PPPoE / RTP /RTSP / DNS / DDNS / NTP / FTP / UPnP / HTTP / SNMP / SI
Compatible Integration: ONVIF2.4, GB/T28181
Pan&Tilt
Pan Range: 360º endless
Pan Speed: 0.05º ~ 80º
Tilt Range: -30º ~ 40º (-20º~90º)
Tilt Speed: 0.5º ~ 60º
Number of Preset: 255
Patrol: 6 patrols, up to 18 presets per patrol
Pattern: 4, with the total recording time not less than 10 minutes
Power loss recovery: Support
Infrared
IR Distance: 150m
IR Angle: Adjustable by zoom
General
Power Supply: DC 12-24V
Power consumption: 35 W (light on)

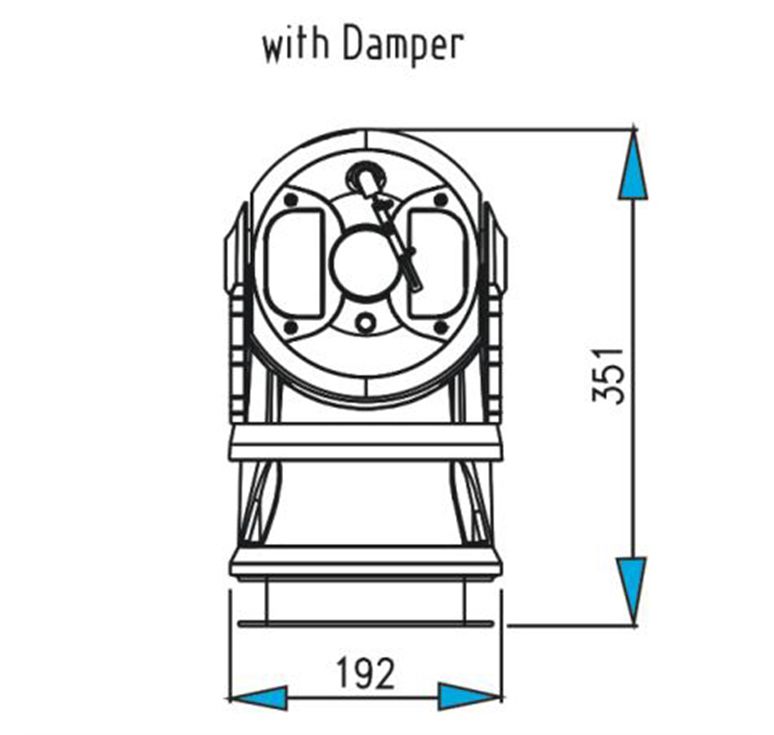

Dimension: Without damper: 192(mm)×315(mm) / With damper: 192(mm)×351(mm)
Working Environment: -40ºC ~ 65ºC
Weight: 6.5kg
Ingress Protection: IP67
Wiper: Support
