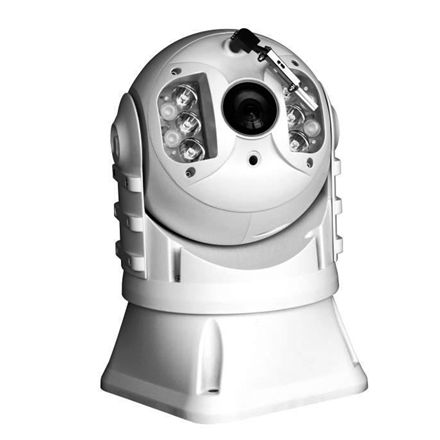

Camara motorizada vehiculo PTZ IP 2Mp IR150 30x

Consultar disponibilidad

Ref: VH-PTZ-970-30-2.
Aluminum PTZ case with high strength;
Powerful aux IR system, range up to 150 meters; infrared or White Light Range optional.
High Beam & Low Beam Settings for both Lighting models.
Model with Infrared lights will automatically turn on lamps in low light settings, can be automatically switched from low to High Beams, depending on Camera Zoom distance.
IP index up to IP67, full weather proof;
New design of drive system, PTZ positioning precision up to +/-0.05º.
Wide Voltage Range perfect for Mobile applications (12-24V DC
Multiple optional video output formats IPC, AHD, Analog
Wiper. Shock absorber. Anti-shock.
Optional color paint, white, black.

Más detalles

1 970,95 € Precio sin IVA

Descargar producto en PDF

CAMERA
Image Sensor 1/2.8" Progressive Scan CMOS,2MP
Effective Pixels 1920(H) x 1080(V), 2 Megapixels
Scanning System Progressive
Minimum Illumination Color: 0.005Lux@F1.6; 0.005Lux@F1.6 (IR on)

LENS
Focal Length Focal Length 4.3mm~139mm
Max. Aperture Max. Aperture F1.6 ~ F5.0
Shutter Auto/Manual;Shutter timer:1/3s~1/30,000
Optical Zoom Optical Zoom 30x
Focus Control Focus Control Auto/Manual

PTZ
Pan Range 360°endless
Pan Speed 0.05°~80°/s
Tilt Range -30°~40° (-20°~90°)
Tilt Speed 0.5°~60°/s
Number of Preset 255
Patrol 6 patrols, up to 18 presets per patrol
Pattern 4 , with the total recording time not less than 10 minutes
Power loss recovery Support

Infrared
IR distance Up to 150m
IR intensity Automatically adjusted, depending on the zoom ratio

Video
Compression H.265/H.264 / MJPEG
Streaming Capability 3 Streams
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR(120dB)
White Balance Auto,ATW,Indoor,Outdoor,Manual
Gain Control Auto / Manual

Network
Ethernet RJ-45 (10/100Base-T)
Protocol
IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP,ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP,
DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Interoperability ONVIF, PSIA, CGI
Web Viewer IE10/Google/Firefox/Safari...
Management Software Smart PSS, DSS

General
Power DC12-24V (Wide voltage input),36W(Max)
Working temperature -40 ?-60?
Humidity 90% or less
Protection level IP66,TVS 4000V Lightning protection, surge protection, voltage transient protection
Mount option Mast mount,vibration damper optional

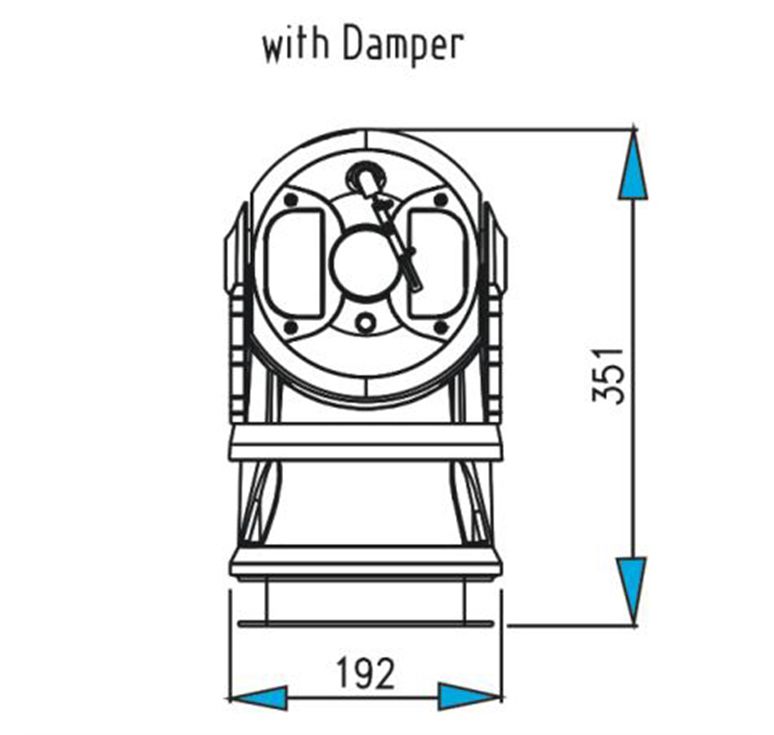

Dimensions With Damper:F192(mm)×351(mm);without Damper: F192(mm)×315(mm)
