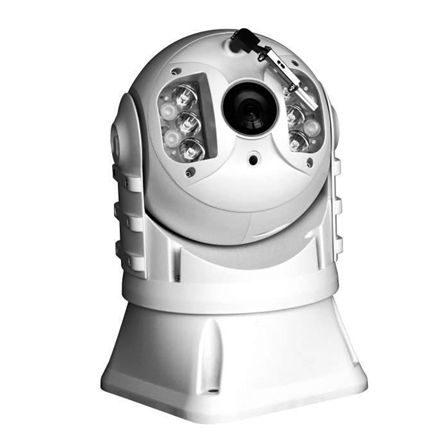

Camara motorizada vehiculo PTZ IP 2Mp IR150 30x

Consultar disponibilidad

Ref: VH-PTZ-970-30.
Aluminum PTZ case with high strength;
Powerful aux IR system, range up to 150 meters; infrared or White Light Range optional.
High Beam & Low Beam Settings for both Lighting models.
Model with Infrared lights will automatically turn on lamps in low light settings, can be automatically switched from low to High Beams, depending on Camera Zoom distance.
IP index up to IP67, full weather proof;
New design of drive system, PTZ positioning precision up to +/-0.05º.
Wide Voltage Range perfect for Mobile applications (12-24V DC
Multiple optional video output formats IPC, AHD, Analog
Wiper. Shock absorber. Anti-shock.
Optional color paint, white, black.

Más detalles

1 970,95 € Precio sin IVA

Descargar producto en PDF

Camera
Sensor: 1/2.8 inch, progressive scan, 2.4 megapixel, CMOS
Lens: 4.5 ~ 135 mm (30x optical zoom / 16x digital zoom), AF automatic focusing and motorized zoom lens
Shutter: Auto/Manual; shutter time: 1/6 s ~ 1/8000 s
Minimum Illumination: 0.002lux (F1.6,50IRE,Color) 0.0002lux (F1.6,50IRE,W/B) 0 lux with IR
Iris: Auto/Manual; F1.6 ~ F4.4
Day/Night: IR-cut filter with auto switch (ICR)
Digital noise reduction: 3D DNR
S/N: >52dB
WDR: DWDR(120dB)

Video
Video Compression: H.265, H.264
Frame Rate: Main Stream: 2MP (1920×1080):Max. 30 fps; Sub Stream:2MP (1920×1080):Max. 30 fps; Third Stream: D1 (720×576): Max. 30 fps
HLC: Supported
BLC: Supported
OSD: Supported
Privacy Mask: Up to 8 areas

Storage
Edge Storage: Optional Micro SD, up to 128 GB

Network
Protocols: L2TP/IPv4/IGMP/ICMP/ARP/TCP/UDP/DHCP/PPPoE/RTP/RTSP/DNS/DDNS/ NTP/FTP/UPnP/HTTP
Compatible: ONVIF 2.4

Pan & Tilt
Pan Range: 360° (endless)
Pan Speed: 0.5°/s ~ 80°/s
Tilt Range: -20° ~ +90° (auto reverse)
Tilt Speed: 0.5° ~ 60°/s
Number of Presets: 256
Patrol: 6 patrols, up to 18 presets per patrol
Pattern: 4 , with the total recording time not less than 10 mins

Interface
Video output/HD: RJ 45
Video output/SD: BNC, CVBS
communication port: RS485

Infrared /White light
IR Distance: up to 150meters
IR Intensity: Automatically adjusted, depening on zoom ratio

General
Power: DC 12V~24V Power consumption: 48W
Mounting temerature: vehicle mounted; Mast mounting
Weight: 6.5KG
Working Environment: -40°C ~ +65°C (-40°F ~ 149°F), Humidity:10%~95% RH(non-condensing)
Ingress Protection: IP67 Protection Standard
