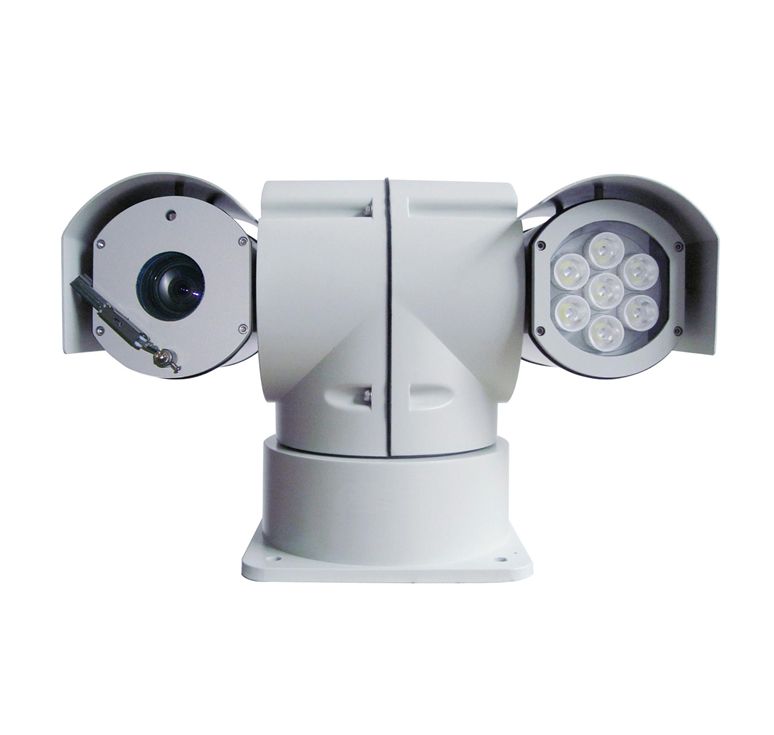

Camara motorizada PTZ IP 2Mp vehiculo IR120 20x

Camera
Focal length: 4.7-94mm, 20 times optical zoom
Horizontal viewing angle:61.4-2.9 degrees (wide angle - telephoto)
Sensor: 1/2.8" Progressive Scan CMOS
Signal system: PAL/NTSC
Minimum Illumination: Color: 0.05Lux @ (F1.6, AGC ON)Black & white: 0.01Lux @ (F1.6, AGC ON)
Shutter: 1/1second ~ 1/30,000second
Day and night conversion mode: ICR infrared filter type
S/N: >52dB
Resolution: 50HZ:25fps(1920x1080) 60HZ:30fps(1920x1080)50HZ:25fps(1280x720) 60HZ:30fps(1280x720)
White balance means: Automatic 1 / automatic 2 / indoor / outdoor / manual / sodium /

Lens
3D noise reduction Support
Focal length: 4.7-94mm, 20 times optical zoom
Aperture: F1.6-F3.5
Horizontal viewing angle: 61.4-2.9 degrees (wide angle - telephoto)
Close-up: 10-1500mm (wide angle - telephoto)
zoom speed: About 3 seconds (optical, wide-angle - telephoto)
Day and night conversion mode: ICR infrared filter type

PTZ Features:
Horizontal preset position speed: 100°/S
Vertical preset position speed :80°/S
Level manually control speed: 0°-60°/S
Vertical manual control speed: 0°-40°/S
Horizontal angle: 360°
Vertical angle: +90º -90º
Preset point :128
Infrared fill light distance: 100 meters (Photoresistor automatic induction work)
Control method: Multi-protocol, RS485
Relative humidity: 90%
Degree of protection: IP66
Operating temperature: -35º +55º
Power consumption: DC12V(50VA)

Menu Control
Exposure mode:Auto exposure / aperture priority / shutter priority / manual exposure
Focus mode: Auto focus / one focus / manual focus
Backlight compensation: Support
RS-485 :Communication protocol / baud rate / address
Dead pixel detection:Support

Compression standard
Video compression standard:H.265/H.264
Compression output bit rate: 32 Kbps~16Mbps
Audio compression standard:G.722.1,G.711-a law,G.711-u law,MP2L2,G.726,AAC,PCM

Max.image 1920X1080

Network function
Storage function: Support micro SD
Intelligent alarm: Motion detection, masking alarm, memory full, memory error, audio anomaly detection, cross-border detection, regional intrusion detection
Network protocol:TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE,
SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS,IPv6 (SIP,SRTP,optional)
General function: Dual stream, heartbeat, password protection

Function
Image quality adjustment: Brightness, contrast, sharpness, saturation can be adjusted
Focus mode: Auto focus / one focus / manual focus
Exposure mode: Auto exposure / aperture priority / shutter priority / manual exposure
Day and night mode: Auto / color / black& white / timer / alarm input trigger
Wide dynamic: Off / On
Backlight compensation : Off / up / down / left / right / center
Gain: 16 classes adjustable
Strong light suppression: Off / On

Dead pixels compensation: Support
Digital noise reduction: 3D
Other functions: Sharpness, brightness, saturation, contrast, 3D noise reduction
Lens initialized :Built-in
External communication: RS485 interface, Pelco protocol

Interface
External interface: Network port, RS485, Alarm In / Out, Line In / Out, CVBS, SDHC
Audio input: 1 channel
Audio output: 1 channel
Communication interface: 1 RJ45 10M / 100M adaptive Ethernet port, an RS-485 interface
Alarm input: 1 channel
Alarm output: 1 channel
Interface protocol: ONVIF, PSIA, CGI, ISAPI

Others
Operating temperature and humidity: -10º - 60º, less than 90%RH
Power supply: DC12V 10%, support POE power supply
Power consumption: Static 2.5W, dynamic 4.5W
Dimensions (mm): 70.0x80.0x130.0
Weight: 320g
