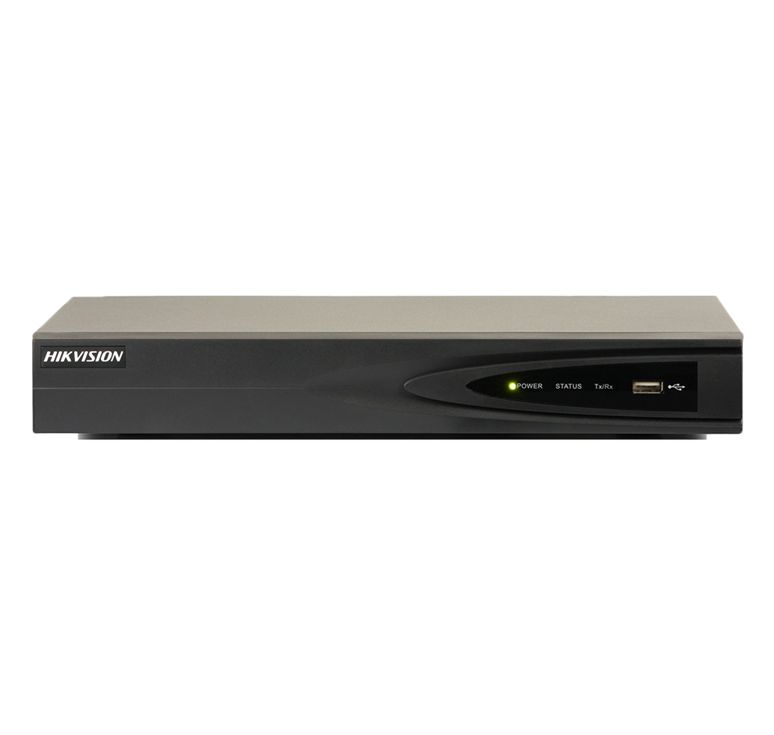

NVR 4ch PoE H.265+ 8Mpx 40Mbps, E/S alarma, HDMI

Professional and Reliable
Dual-OS design to ensure high reliability of system running
ANR technology to enhance the storage reliability when the network is disconnected
HD Input
H.265/H.264/H.264+ video formats
Connectable to the third-party network cameras
4 IP cameras can be connected
Recording at up to 8 MP resolution
Supports live view, storage, and playback of the connected camera at up to 8 MP resolution
HD Output
HDMI/VGA outputs provided
HDMI Video output at up to 4K (3840 × 2160) resolution
HD Storage
1 SATA interfaces connectable for recording and backup
Storage space effectively saved by 50% to 70% with the use of H.264+ decoding format
HD Transmission
1 self-adaptive 10M/100Mbps network interface
4 independent PoE network interfaces are provided
Various Applications
Centralized management of IP cameras, including configuration, information import/export, real-time information
display, two-way audio, upgrade, etc.
Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can
be realized
VCA detection alarm is supported
Instant playback for assigned channel during multi-channel display mode
Smart search for the selected area in the video; and smart playback to improve the playback efficiency


cARACTERISTICAS TECNICAS

Video/Audio Input

IP video input: 4-ch
Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1kO)

Network

Incoming bandwidth: 40Mbps
Outgoing bandwidth: 80Mbps

Video/Audio Output

Audio Output: 1-ch, RCA (Linear, 1kO)

Decoding

Capability: 4-ch@1080P

Hard Disk

SATA: 1 SATA interface for 1 HDD
Capacity: Up to 6TB capacity for each HDD

External Interface

Network Interface: 1 RJ-45 10 / 100 Mbps selfadaptive
Ethernet interface

USB Interface: 2, USB2.0

POE

Interface: 4 independent 10 /100 Mbps PoE Ethernet interfaces

General

Power Supply: 48 VDC
Consumption(without hard disk and POE): 10 W
Working Humidity: 10% - 90%
Dimensions: 315 × 240 × 48 mm (12.4" × 9.4" × 1.9")
Weight(without HDD): 1kg (2.2 lb)
