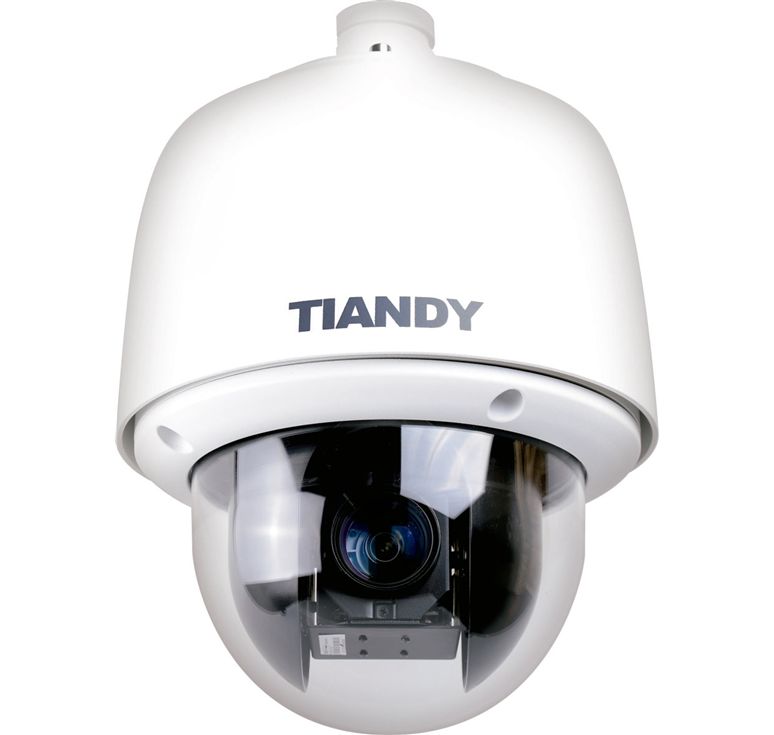

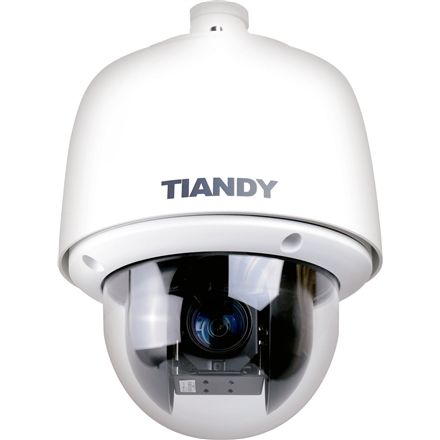

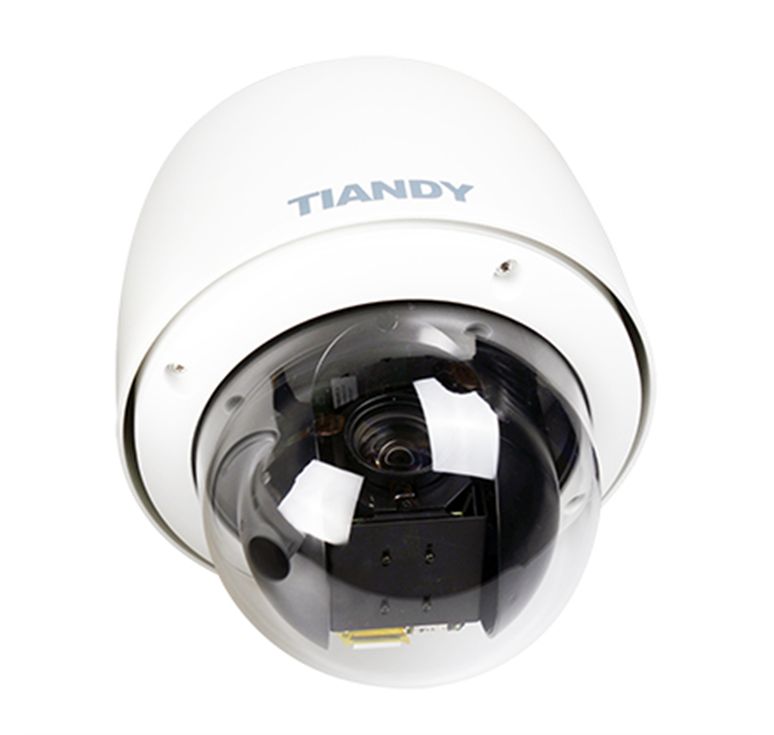

Domo Motorizado PTZ IP 2Mp 33x H.265 IVA Starlight

Consultar disponibilidad

Ref: NH6233.
Starlight Ultra Low Light 0.002lux
H.265/H.264 HP/MP/BP/M-JPEG Codec
Up to 1920×1080@30fps
Mechanical WDR 140dB
Optical Zoom: 33x, Digital Zoom: 16x
Speed Max 550°/s, -15~90° Tilt Angle
NIR, WDR, 3D DNR, HLC, Dual-ICR, AWB, AGC, BLC
VCA Tripwire/Double Tripwire/Perimeter/Object Abandon/Object Lost/Running/Loitering/Parking/Crowd/Audio Abnormal Detection/Video Abnormal Detection
Interface Bulit-in Mic,Audio in/out 1/1,Alarm in/out 1/1,MicroSD Card Slot, up to 128GB, Reset Button
TVS 6000V, Lightning/Surge 4000V Protection, IP67
Operating Conditions -40°C-70°C, 0?95% RHG
CE, FCC

Más detalles

1 153,95 € Precio sin IVA
  • Descargar producto en PDF

  • Camera
    Image Sensor: 1/2.8" CMOS
    Effective Pixels: 1920X1080
    Signal System: PAL/NTSC
    Minimum Illumination: Color: 0.002 Lux @(F1.6,AGC ON)
    White Balance: Auto/ATW/Manual
    AGC: Auto/Manual
    S/N Ratio: ? 50dB
    BLC: YES
    HLC: YES
    Smart Defog: YES
    WDR: 140dB
    Digital Noise Reduction: 3D DNR
    Exposure Mode: Auto/Manual/Iris First/Shutter First
    Shutter Time: 1s-1/100000s
    Day& Night: IR Cut Filter with Auto Switch
    Digital Zoom: 16X
    Dynamic Privacy Masking: 24 Dynamic Privacy Masks Programmable; Optional Multiple Colors
    Auto Focus: Auto/ Semi-automatic/ Manual
    OSD: 16×16,32×32,24×24,48×48,64×64 Character Size
    Time, Date, Week, Character Superposition in 5 Regions
    PTZ Angle Superposition
    Lens
    Focal Length: 4.6-152mm, 33x
    Optical Zoom Speed: Approx. 5s (Optical Wide-Tele)
    Angle of View: 62.1º(w) - 2.18º(t)
    Minimum Working Distance: 1-1.5m (Wide-Tele)
    Aperture Range: F1.6-F4.8
    Pan & Tilt
    Pan Range: 360º Endless
    Pan Speed: Pan Manual Speed 0.1º - 550º/s (Stepless Speed)
    Pan Preset Speed 550º/s
    Preset Accurity: ±0.2º
    Tilt Range: -15º~90º Auto Flip
    Tilt Speed: Tilt Manual Speed 0.1º-550º/s
    Tilt Preset Speed 550º/s
    Proportional Zoom: Rotation Speed Can Be Adjusted Automatically According to Zoom Multiples
    3D Position: YES
    Number of Preset: 500
    Scan: 8
    Cruise: 8, Up to 32 Presets per Cruise
    Pattern: 8, Each One With 600s Memory or 300 Orders
    Power Loss Recovery: YES
    Guard Action: Preset/ Cruise/ Pattern/ Scan
    PTZ Position Display: YES
    Freeze Frame: YES
    Interface
    Audio Input: 1-ch Mic in (Line in Interface)
    Line Input 2-2.4V[p-p]; Output Impedance 1K?, ±10%
    Audio Output: 1-ch Line Level
    Ethernet: 1-ch RJ45 10M / 100M
    Alarm Input: 1-ch
    Alarm Output: 1-ch
    On-board Storage: MicroSD Card Slot, up to 128GB
    BNC / RS-485: N/A
    Extension: N/A
    Network
    Ethernet: 10Base -T /100Base-TX RJ45 Connector
    Max.Image Resolution: 1920×1080
    Main Stream: 1920×1080@25/30fps; 1280×960@25/30fps;1280×720@25/30fps; 1280x720@50/60fps; 704×576@25/50fps;704×480@30/60fps
    Sub Stream: 704×576@25fps/704×480@30fps; 352×288@25fps/352×240@30fps; 176×144@25fps/176×120@30fps
    Third Stream: 352×288@25fps/352×240@30fps
    Image Compression: H.265/H.264 HP/MP/BP/M-JPEG
    ROI Encoding: 8 Dynamic Areas for Both Main and Sub Stream
    Audio Compression: G.711A/G.711U/AAC/ADPCM
    Protocols: IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE
    Remote Connection: 5 Users Access at the Same Time
    User/Host Level: Up to 32 Users, 4 Levels
    Security Measures: User Authentication (ID and PW),
    Host Authentication (MAC Address)
    IP Address Filtering
    Web Browser: IE8, IE9, IE10, IE11, Firefox 24
    System Compatibility: ONVIF (Profile S), SDK
    Advance:
    Video Analytic (VCA): Tripwire/Double Tripwire/Perimeter/Object Abandon/Object
    Lost/Running/Loitering/Parking/Crowd/Audio Abnormal Detection/Video Abnormal Detection
    Intelligent Alarm: Motion Ddetection, Mask Alarm, Port Alarm,Network Disable Alarm, IP Conflict, MAC Conflict Detection
    General
    Language: English,Spanish,Korean,Italian,Turkish,Thai,Russian,Traditional Chinese,Simplified Chinese,Polish,French
    Operating Conditions: -40°C-70°C, 0 - 95% RHG
    Power Supply: AC24V 2A Independent External Power Adapter
    Power Consumption: 16W/18W (ICR Instant Switch)
    Circuit Protection: TVS 6000V, Lightning/ Surge 4000V Protection
    Impact Protection: IP67

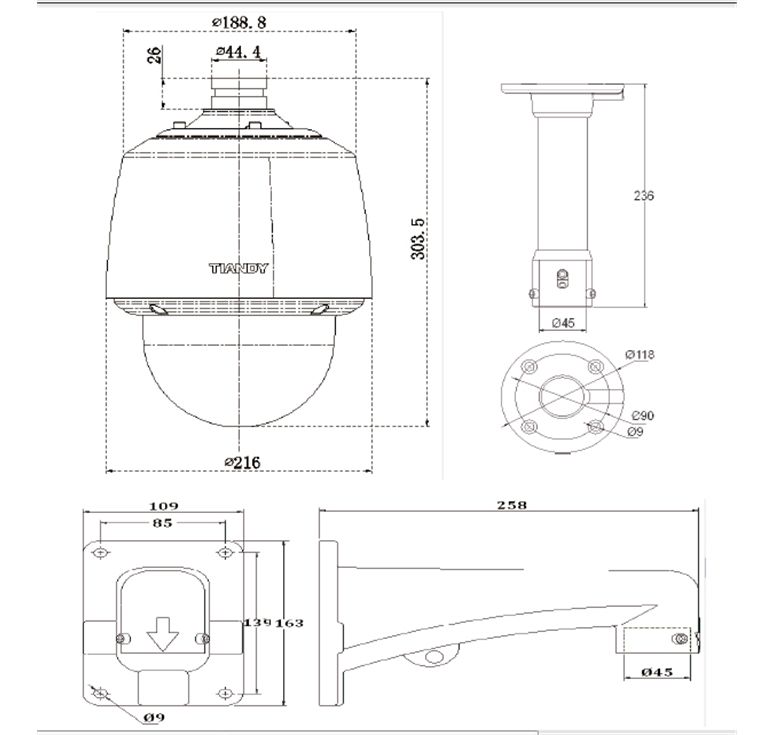

    Dimensions: 298mm × 216mm × 216mm
    Weight: 3.7KG (IP PTZ Only), 6KG (With Packing Box)
