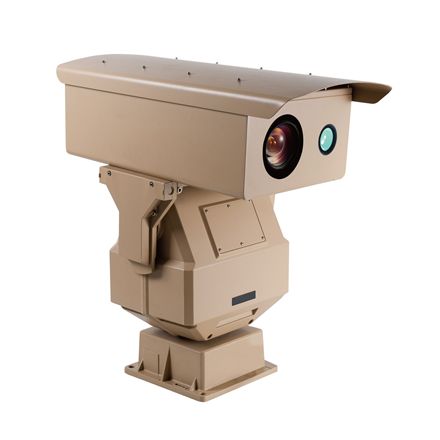

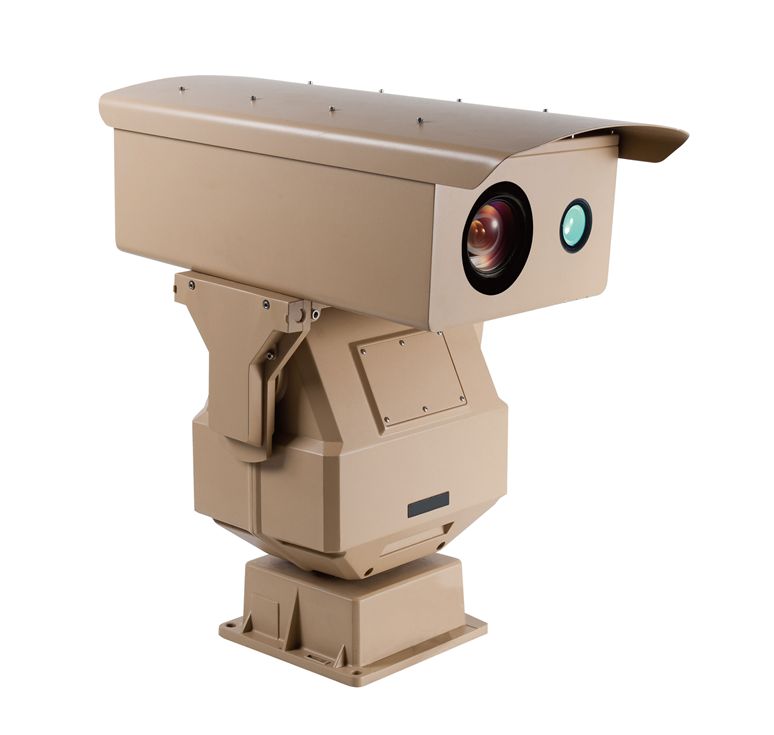

Camara PTZ 2MP 60x Long Distance Laser IR 3Km IP66

Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.002 Lux @ (F1.2, AGC ON)
B/W: 0.0002 Lux @ (F1.2, AGC ON)
Shutter time 1s ~ 1/100,000s
Slow shutter Support
Lens Mount C/CS mount
Auto Iris DC drive(-P: support P-Iris)
Day& Night IR cut filter with auto switch
Wide Dynamic Range 120 dB
Digital noise reduction 3D DNR
Focus: ABF(-A model)
Compression Standard
Video Compression H.264+/H.264/MPEG4/MJPEG
H.264 code profile Baseline Profile / Main Profile / High Profile
Video bit rate 32Kbps~16Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2
Audio bit rate 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Triple Streams Yes
Max. Image Resolution 1920 x 1080
Frame Rate 50Hz:50fps(1920×1080,1280×960,1280×720)
60Hz:60fps(1920×1080,1280×960,1280×720)
Third Stream Independent with Main-Stream and Sub-Stream upto
50Hz:25fps(1920×1080);60Hz:30fps(1920×1080)
Image Enhancement BLC/3D DNR/ROI/Defog/EIS
Image Settings Rotate Mode, Saturation, Brightness, Contrast, Sharpness adju
Stable by clients of web browser
Regional Cropping Support
Picture Overlay LOGO picture can be overlaid on video with 128x
128 24bit bmp format
Day/Night Switch Auto/Schedule/Triggered by Alarm In
Network
Network Storage NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS,
RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,8
02.1X,QoS,IPv6,Bonjour
Security User Authentication, Watermark, IP address filte ring, Anonymous access
System Compatibility ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Audio
Environment Noise Filtering Support
Audio I/O Support dual audio track, stereo
Audio Sampling Rate 16kHz / 32kHz / 44.1kHz / 48kHz
Lens Options
30X,360mm Lens
Focal Length f=12~360mm
Iris Range F=2.6~360
Zoom Rate 30X
Frog Penetration Not Support
Auto Focus Support
33X,528mm Lens
Focal Length f=16~528mm Lens
Iris Range F=2.4~ 360
Zoom Rate 33X
Frog Penetration Not Support
Auto Focus Not Support
37.5X,750mm Lens
Focal Length f=20~750mm
Iris Range F=4.6~ 360
Zoom Rate 37.5X
Frog Penetration Not Support
Auto Focus Support
64X,800mm Lens
Focal Length f=12.5~800mm
Iris Range F=3.5~ C
Zoom Rate 64X
Frog Penetration Support
Auto Focus Support
60X,1000mm Lens
Focal Length f=16.7~1000mm
Iris Range F=3.5~C
Zoom Rate 60X
Frog Penetration Support
Auto Focus Support
Laser Illuminator
Wavelength 808nm, near infrared laser
Consumption =15W
Angle (0.2°-28°) ±0.2° coaxial synch linkage control
Protection Level GB7247.1-2001
PTZ
Night Vision Range 3,000m night view with laser illuminator
Angle Return Support
Angle Control Support
Pan Rotation Range 0° ~ 360° continuous
Tilt Rotation Range -45° ~ 45°
Manual Control Speed Pan: 0.01° ~12° /s; Tilt: 0.01° ~8° /s
Preset 80
Auto Scan 8
Cruising Track 8
Apple Peel Rotation 8, based on OSD menu
Step Scan 8, based on OSD menu
Power Failure Recovery Recover to previous PTZ and lens status after
power failure
Wiper Default, DC12V drive
General
Power Supply DC48V±10%
Power Consumption Working =200W; standby: 70W
Working Environment Working temperature: -40ºC ~ 50ºC; working
humidity: =90% RH
Protection Level IP66

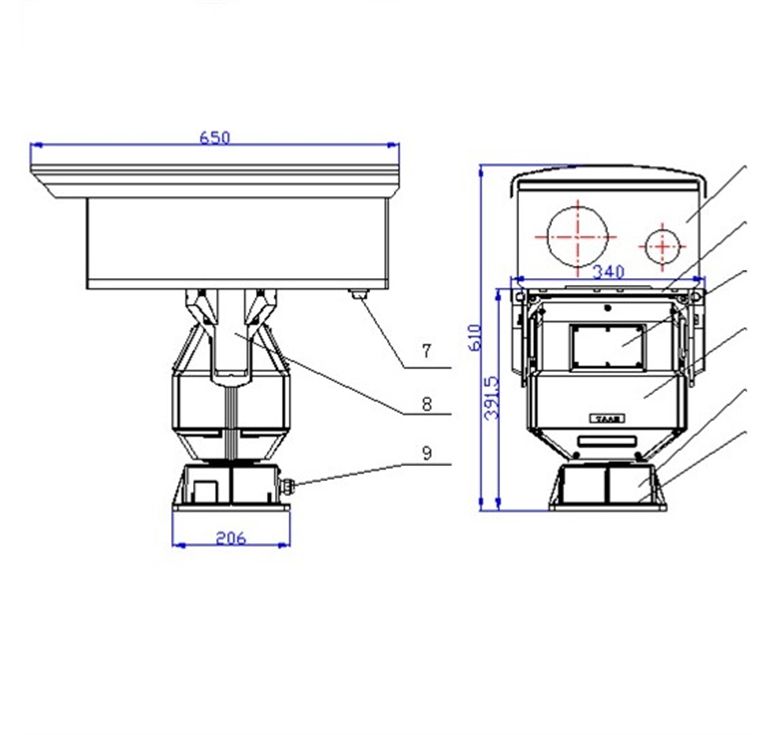

Dimensions 750(L) x 347.9(W)x609.2(H) mm
Material Aluminum alloy
Weight 45kgs
