Inicio Switch ProfesionalSwitch PoESwitch 16p 100M PoE+ gestion, UL 2p 1000M + 1p SFP

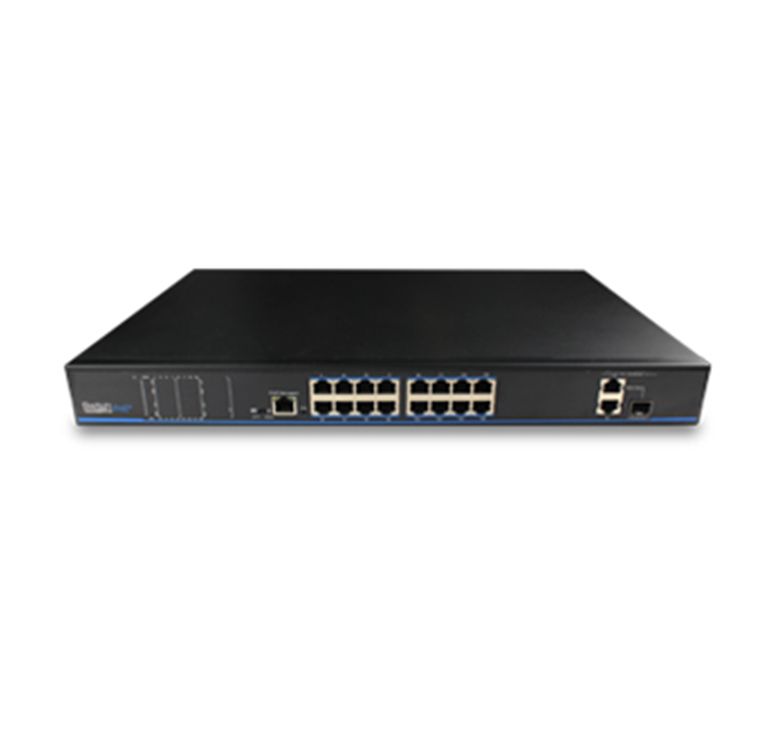

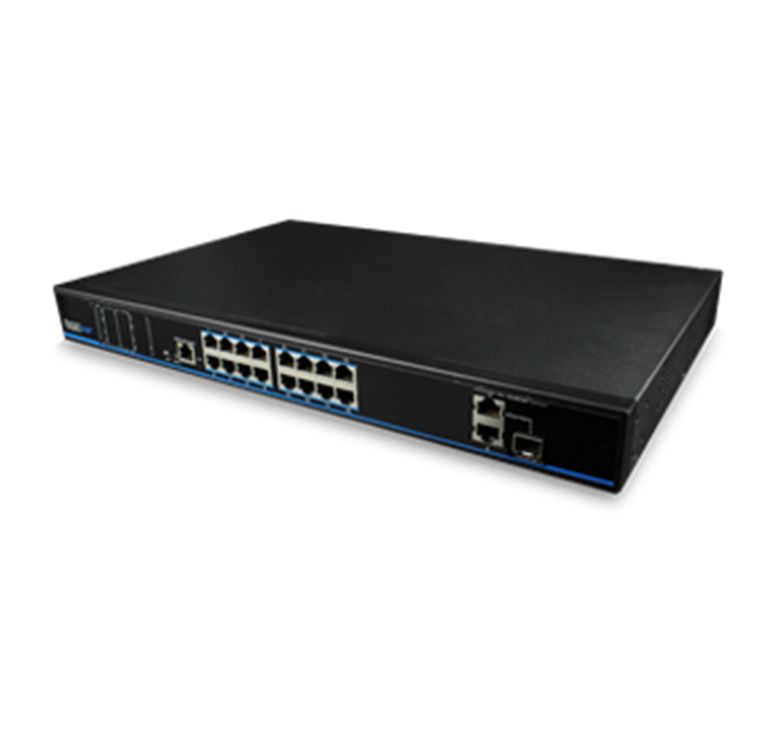

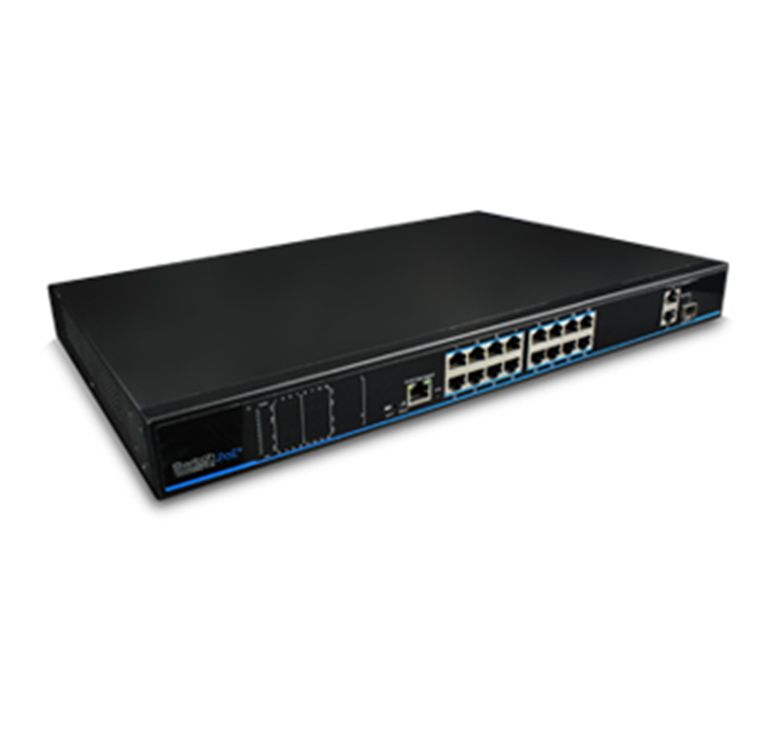

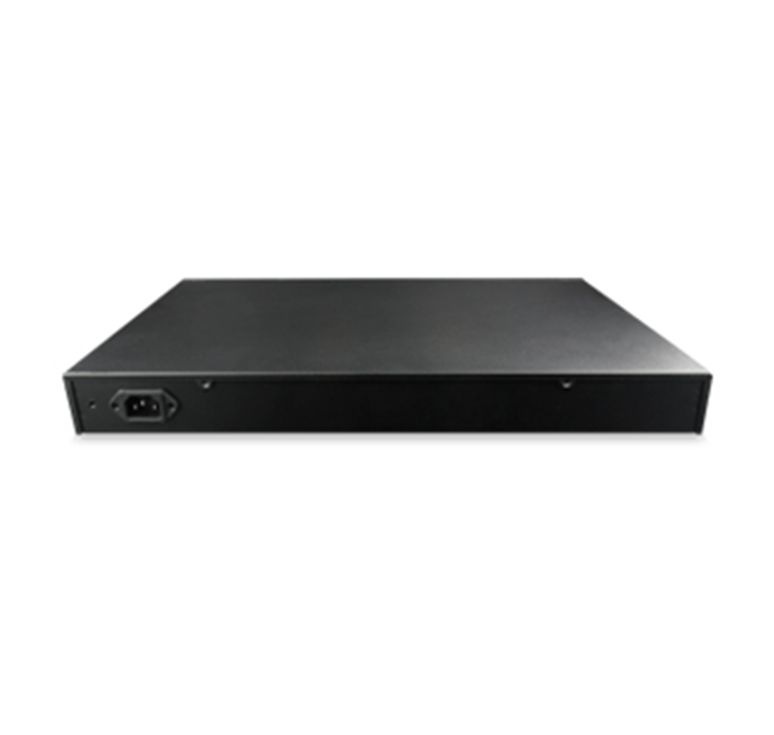

Switch 16p 100M PoE+ gestion, UL 2p 1000M + 1p SFP

Advertencia: ¡Últimos artículos en inventario!

Disponible

Ref: UTP1-SW16-TP300.
16 puertos PoE de enlace descendente, 2 puerto de enlace ascendente de 1000Mbps Y 1 puerto SFP (Combo), Los puertos Ethernet de enlace descendente son compatibles con PoE +, cada puerto admite máx. Salida de 30W.

Más detalles

321,95 € Precio sin IVA

Cantidad

Descargar producto en PDF

Downstream Ports: 16* 10/100Base-TX( PoE)
Uplink Ports: 2*10/100/1000Base-T and 1*1000Base-X/SFP( Combo)
Network Standard: IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3z,IEEE802.3X
Switch Capacity: 7.2Gbps
Throughput: 5.36Mpps
Switch Processing Scheme: Store and Forward
Memory Buffer: 2.75M
MAC Table: 4K
PoE Standard Type: 802.3af/at(PSE) End-span
One-key CCTV mode: all the downlink ports can only comunicate with uplink ports ;retrain the network storm to 3Mbps; extend transmission distance of the downlink ports to 250m max.
Power Pin Assignment:1/2(+),3/6(-)
PoE Power Output: 54V DC , 30 watts max
PoE Budge: 270 watts max
PoE Management: Via Web( Default IP Address 192.168.1.200) to check, on/off and adjust each port PoE output
Lightning protection: 6KV Execute:IEC61000-4-5
ESD: 6KV Contact discharge
8KV Air discharge
Execute:IEC61000-4-2
Power Supply: 100~240V AC;50/60Hz
Power Dissipation: <300W(Including PoE)
Work Temperature: -10ºC~50ºC
Storage Temperature: -40ºC~85ºC
Humidity(Non-condensin): 5%-95%
Dimension(L×W×H): 442mm×207mm×44.5mm
Weight: 2.69kg
Regulator: CE,FCC,ROHS
