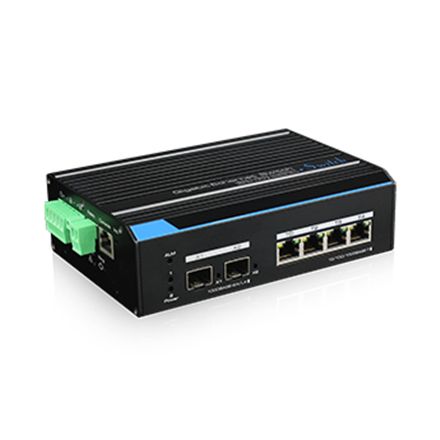

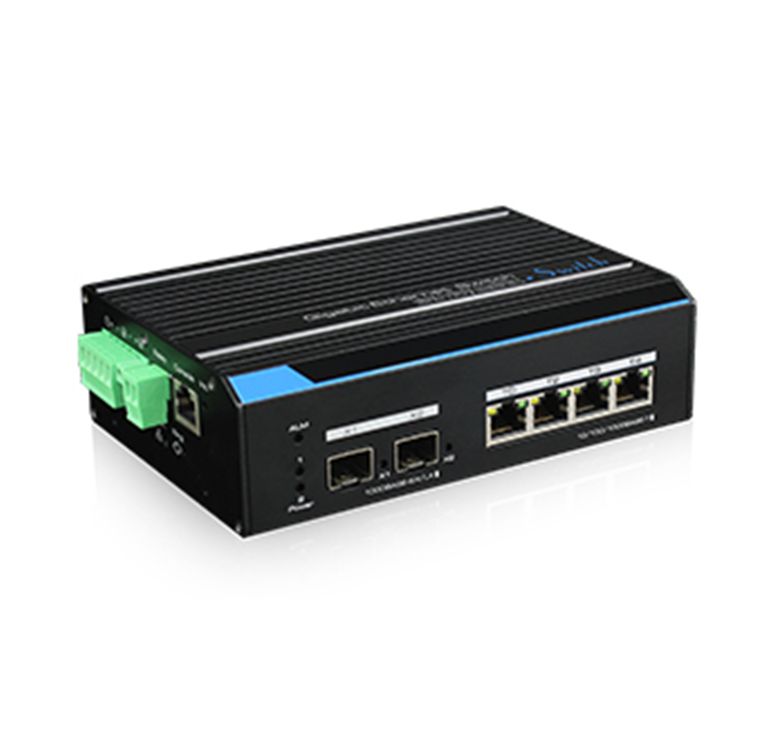

Inicio Switch ProfesionalSwitch Industrial / Carril DINSwitch 4p 1000M, UL 2p SFP, Layer 2

Switch 4p 1000M, UL 2p SFP, Layer 2

Advertencia: ¡Últimos artículos en inventario!

Disponible

Ref: UTP7304GE.
4 gigabit Ethernet ports and 2 gigabit optical SFP portsBroadcom chip; Buffer reaches 4Mbit, Support 4K high-definition video transmission;Support Web-based network management,Support one-key Fast-Ring setup,2 SFP ports developed a fast-ring.6KV surge immunity, industrious class-4 protection and anti- interference ability;Redundant power source;Relay alarm: Support power no-input,Ethernet link off by relay turn over;Support fast ring ,support 30 pcs switches Max. in a ring system ,Self-healing in 20ms Min.Support one-key Fast-Ring setup,2 SFP ports developed a fast-ring.

Más detalles

210,95 € Precio sin IVA

Cantidad

Descargar producto en PDF

Power supply: Power adaptor
Voltage range: 12~57VDC
Comsumption: Self comsumption<30W

Port:

Copper Port: T1~T4 RJ45:10/100/1000Base-T
X1~X2 SFP 1000Base-X
Distance:RJ45 Ports:0~100m;SFP ports depand on SFP module

Console: 1*RJ45-R232 serial port(115200,8,N,1)
Init-key: Short press:restart>5s restore factory settings
One-key fast-ring: Default mode: No ring(can setup on web management). Ring mode: Fast ring with SFP X1 and X2

Network switch:

Throughput: 17.9Mpps
Switch fabric: 24Gbps
Buffer: 4Mb
MAC table: 8K

Alarm:

Relay alarm: Power no-input,Ethernet link off,PoE link off alarm by relay turn over

Indicator:

Power: 2*red LED
RJ45: Link/Acting:Green LED PoE:Yellow LED
SFP: Link:Green LED

Protection:

Surge: 6KV:Per:IEC61000-4-5
EMC/EMI:ESD:4 level Per:IEC61000-4-2
RS:4 level Per:IEC61000-4-3
EFT:4 level Per:IEC61000-4-4
CS:3 level Per:IEC61000-4-6
Environment:

Working temperature: -40~+75?
Storge temperature: -40~+85?
Humidity: 0 ~95%

Mechanical:

Dimension(L*W*H): 157 mm×110 mm×46.5mm
Material: Aluminium alloy
Color: Black
Weight: 1000g
