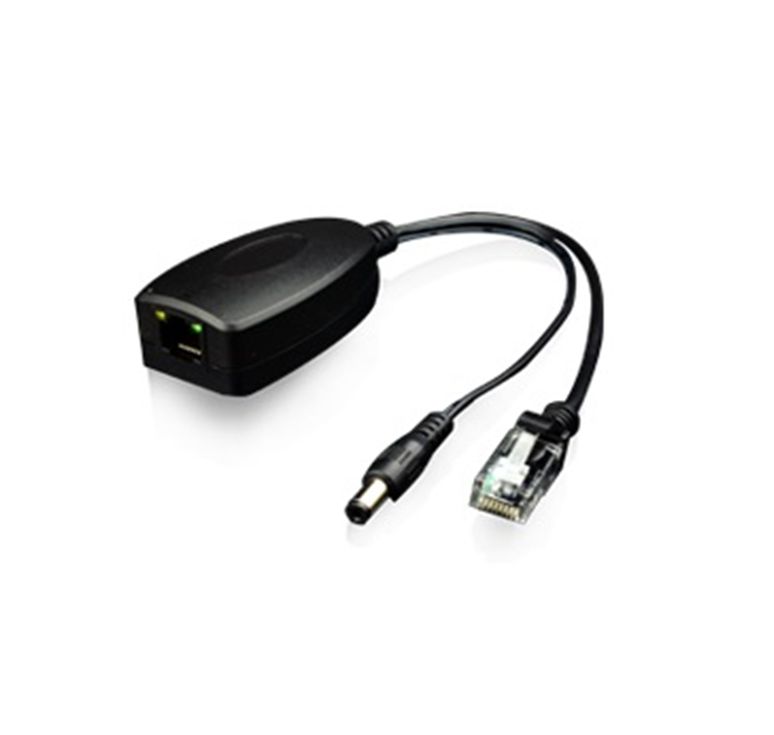

Splitter / Divisor PoE 13W a 12V

Disponible

Ref: UTP3-PDA01-B13W.

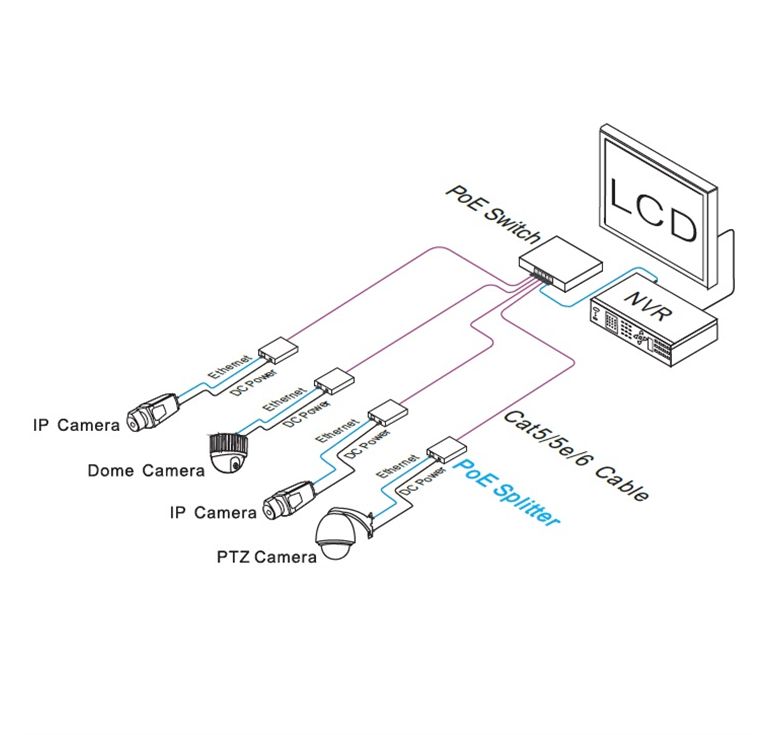

PoE Splitter is compliant with IEEE802.3af standard, which can split data and power from PoE signal. It perfect match camera enclosure and can split Ethernet and power from ethernet cable for these device which can not support PoE. It can work with standard PoE Switch or PSE device, compatible with mid-span and end-span, output 12V/1.1A power by DC terminal, It is widely used in security surveillance and network project.

Más detalles

14,65 € Precio sin IVA

Cantidad

Descargar producto en PDF

Descripción
Reviews

IEEE 802 3af Power over Ethernet Standard Compliance;
Compatible with mode A (End-Span) and mode B(Mid-Span); 12V /1.1A DC Power Output;
Excellent circuit isolation protection;
More than 82% conversion efficiency.

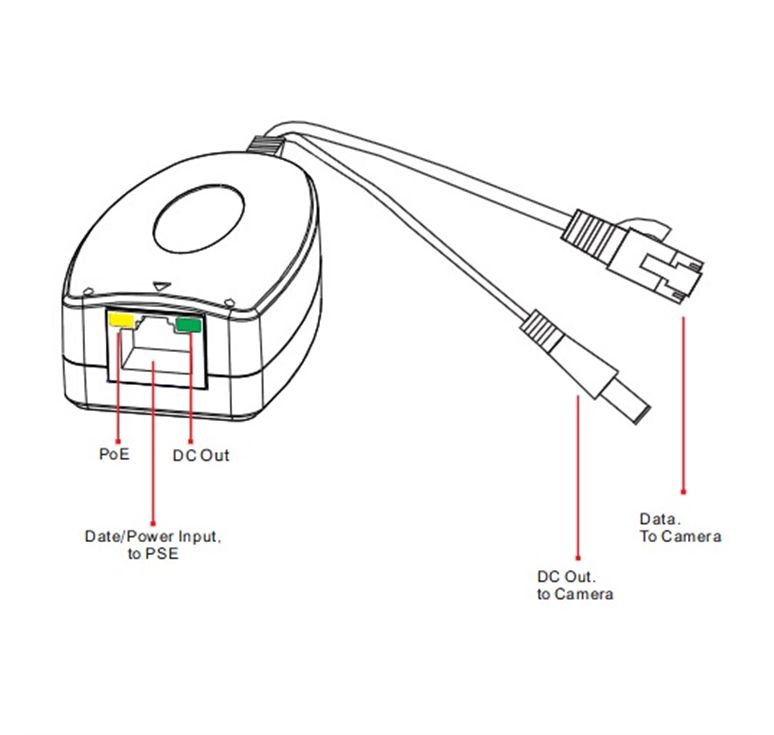

Interface
PoE In: 1×RJ45
Data Out: 1×RJ45
DC Out: 1×green terminal 1×DC connector

PoE Power Supply
Protocol: IEEE803.2af
Power Supply: Support Mode A (End-Span) and Mode B (Mid-Span)
Input: PoE 36V ~ 57V
Output power: DC 12V,13W

Ethernet Port Parameter
Transmission Distance: 100m
Transmission Speed: 10/100Mb
Transmission Medium: Cat5/5e/6 Standard Network Cable

Status Indicator
LED Indicator: Yellow: PoE,Green: DC OUT

Protection Level
ESD: 3 level, Standard:IEC61000-4-2
Surge: 3 level ,Standard:IEC61000-4-5

Environmental
Operating Temperature: -40ºC~60ºC
Storage Temperature: -40ºC~85ºC
Humidity: 0~95%

Mechanics
Dimension (L×W×H): 88.5mm×30.5mm×26mm
Material: Plastic
Color: Black
Weight: 60g
