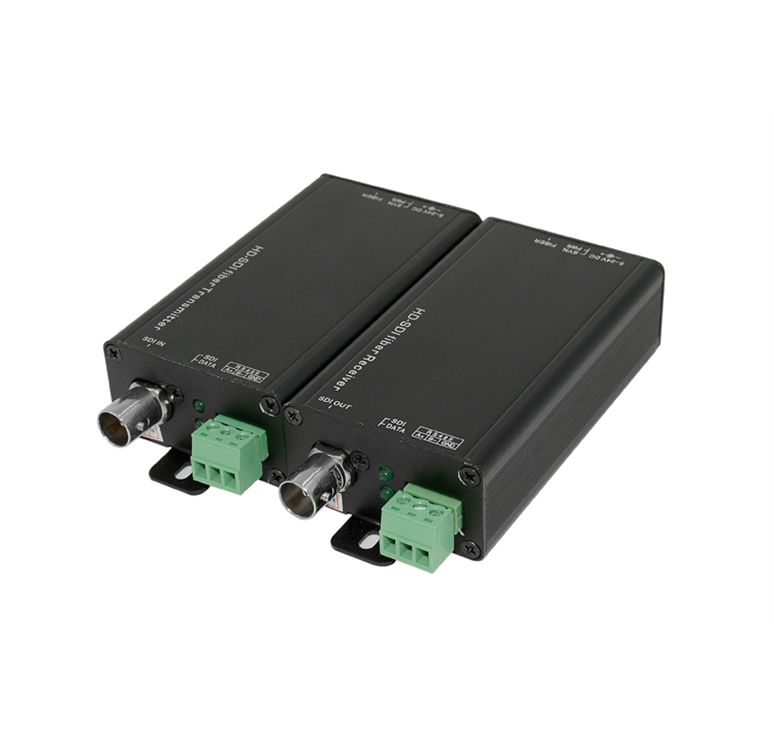

Transmisor Video HD-SDI a Fibra Optica RS485 Audio

One way HD-SDI fiber transmission high-definition digital video and audio signals.
SD, HD input automatic detection, support 270Mbit/s - 1.48Gbit/s rate; support the new 1080P HD-SDI format.
Support SMPTE-292M HD-SDI, SMPTE-259M SDI serial digital video signal and DVB-ASI signal.
For reliable transmission by multi-mode or single-mode optical fiber, the single mode fiber 10KM, up to 60KM.
The built-in cable equalizer for Equalizer, clock regeneration circuit Relocked and cable driver.
Power and other parameters indicate LED can monitor system status.
Signal input with automatic cable equalization function, output has a long drive function.

Features.

Transmission distance: 0-20km
Wavelength: 1310nm/1550nm
Optical fiber connector type: FC
Transmit power: -10-3dbm
Fiber Count: 1core
Receiver sensitivity: Better than-34dbm
Compatible with standard: Support SMPTE292M, SMPTE259M, DVB-ASI (EN50083-9) Standard
Rate: Working at 270Mbps ~ 1.5Gbps
Video Interface: 1 BNC
Data Interface: 1 RS485 industrial terminal
The nominal input and output level: 800mVp-p±10%
The nominal input and output impedance: 75Ohm
Sampling frequency: 32K/48KHz
The nominal input and output level: Unbalanced 2V p-p
Operating temperature: 0 to 40 Degree Celsius / 32 to104 Degree Fahrenheit
Storage Temperature: -20 to 60 Degree Celsius /-4 to 140 Degree Fahrenheit
Relative Humidity: 20~90%RH ( No condensation )
Power requirements: 5~24VDC

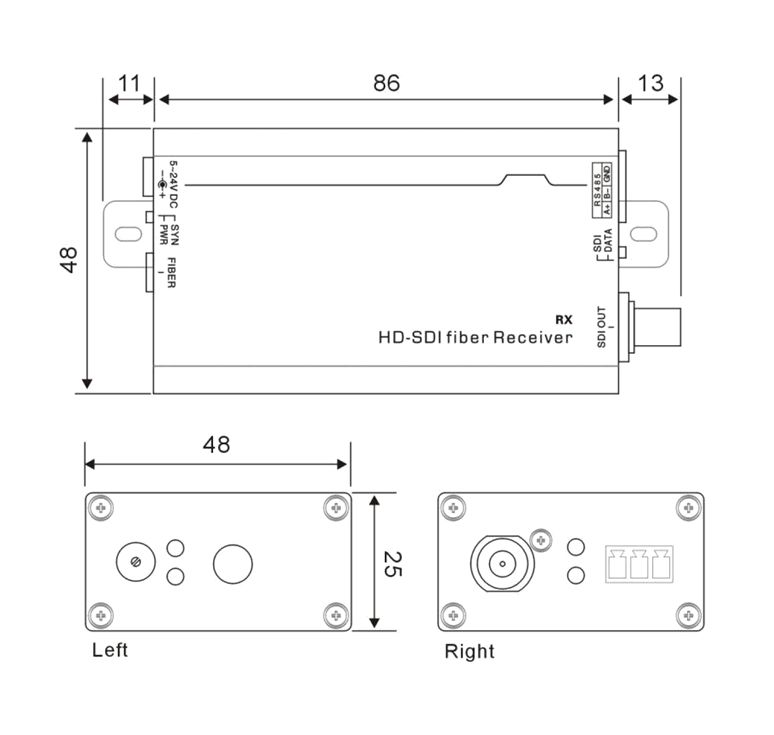

Dimensions: 86x48x25mm
Estructure: Black Aluminium.
